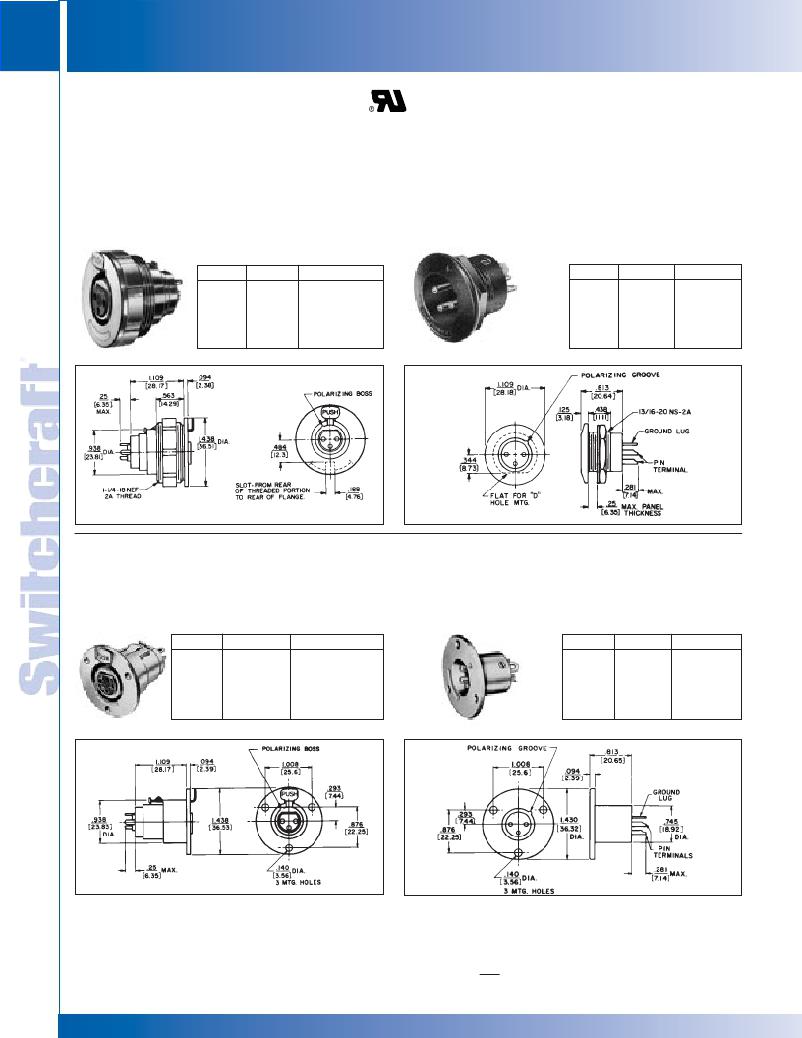

Q-G RECEPTACLES

10

CONNECTORS & RECEPTACLES

?

PHONE: 773 792-2700

* Please visit the product pages on our website for the most up-to-date product information

Q-G ? RECEPTACLES (continued)

B(*)F RECEPTACLE

Panel-mount female receptacle. Mounts with spanner nut

from front of panels up to .4375" (11.11 mm) thick. Slot in

threaded part of housing permits non-turn mounting.

Requires 1.25" (31.75 mm) diameter minimum mounting

hole. Spanner nut is die-cast zinc with satin nickel finish

(Series B*F) or black finish (Series B*FB).

B(*)M RECEPTACLE

Panel-mount male receptacle. Mounts with locknut from front of

panels up to .250" (6.35 mm) thick. Requires .812" (20.64 mm)

diameter mounting hole. For non-turning mounting, can be keyed

to “D” shaped panel hole, or S3519 mounting adapter can be used.

Satin nickel finish (Series B*M) or black finish (Series B*MB).

Part No. 1 Part No. 2 Insert Contacts

Part No. 1 Part No. 2

Insert Pins

B3F B3FB

B4F —

B5F —

B6F —

B7F —

3

4

5

6

7

B3M B3MB

B4M —

B5M —

B6M —

B7M —

3

4

5

6

7

C(*)F RECEPTACLE

Female receptacle for panel or chassis mounting. Flange has

three .140" (3.57 mm) diameter holes for #5-40 mounting

screws (not supplied). Mounts from front of panel or chassis

in 0.953" (24.21 mm) diameter hole.

C(*)M RECEPTACLE

Male receptacle for panel or chassis mounting. Flange has three

.140" (3.57 mm) diameter holes for #5-40 mounting screws (not

supplied). Mounts from front of panel or chassis in .766" (19.45

mm) diameter hole.

Part No. 1

Part No. 5

Insert Contacts

Part No. 1 Part No. 5

Insert Pins

C3F

? QGP326

3

C3M

? QGP327

3

C4F

C5F

C6F

C7F

—

—

—

—

4

5

6

7

C4M —

C5M —

C6M —

C7M —

4

5

6

7

? Special order only. Contact Switchcraft.

1. Satin nickel finish. (standard) 2. “Black-Velvet” finish. (optional) 3. Gold-plated contacts. (optional) 4. Fas-disconnect detent. (optional)

5. Non-reflective gray finish, gold-plated pins. (standard)

DIMENSIONS ARE FOR REFERENCE ONLY

www.switchcraft.com

Inch

(mm)

? Registered trademark of Switchcraft, Inc.

Note: Contact your Switchcraft Representative for price and delivery
